Round air cooled spindle motor 800w, 1.5kw or 2.2kw

${{App.Price(price)}}

Specification{{specs.length > 1 ? 's' : ''}}:

{{spec.fdColor}}

{{spec.fdSize}}

Need help? Chat Now

Air cooled spindle motor Round

Size: Diameter 65mm or 80mm
Power: 800W, 1.5KW or 2.2KW
Voltage: 220VAC
Current: 5A or 8A
Frequency: 0-400Hz
Spindle Speed: 10-24000rpm
Cooling: Air-cooled
Accuracy: 0.003--0.005
Runout off: Less than 0.05mm
Bearing Lubrication: Grease
Collet size: ER11, ER16 or ER20
Bearings: 4 bearings(C7004x2 + C7002x2),P4 class, Angular contact bearings
Main applications: Wood, Aluminum, Stone, metal, glass, PVC industry.

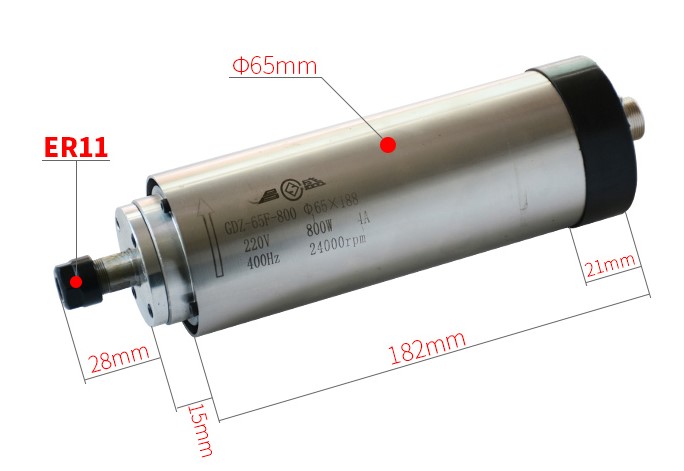

800W Spindle

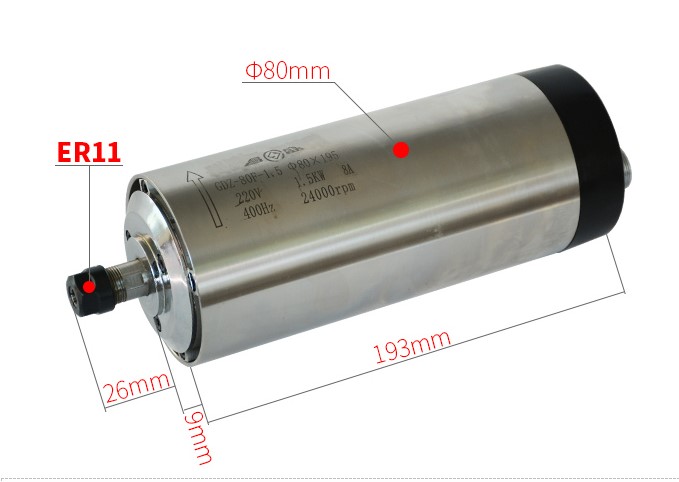

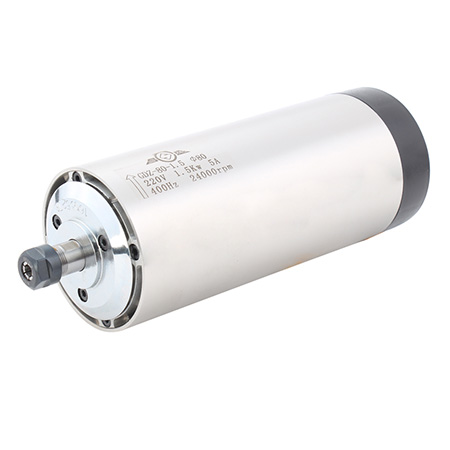

1.5KW Spindle

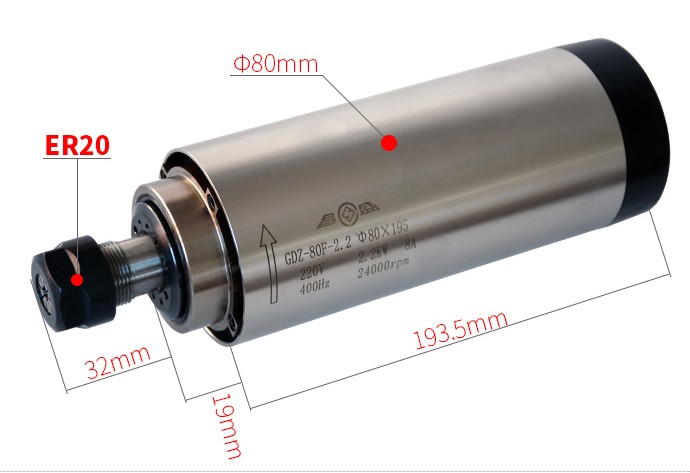

2.2KW Air Cooled Spindle
