Nema11 51mm high torque stepper
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:

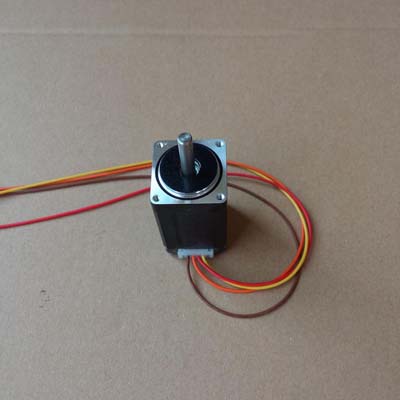

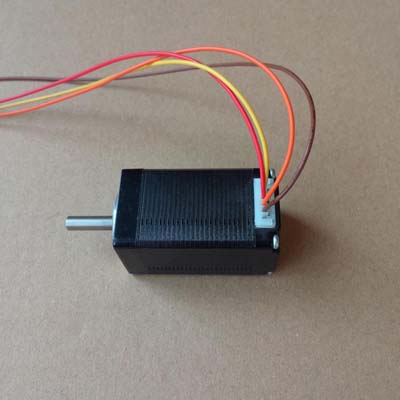

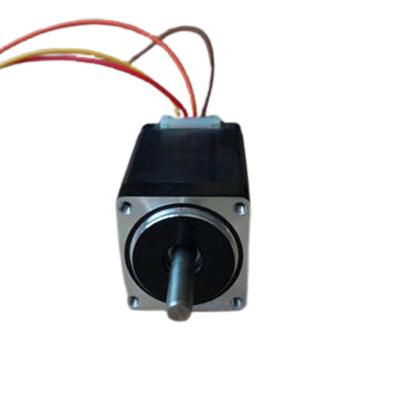

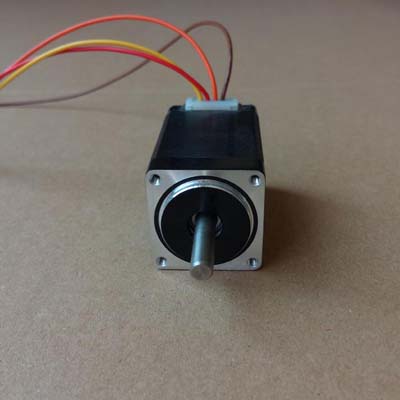

Nema11 51mm Bipolar Stepper Motor

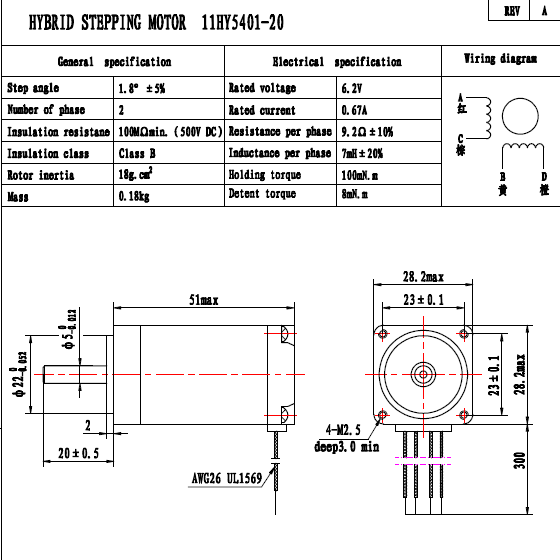

Order No. 11HY5401-20A.PDF
| Stepper Motor | Bipolar 4 Lead Wires |
| Step Angle | 1.8° |
| Holding Torque | 100mN.m(13.5oz.in) |
| Rated Current/phase | 0.67A |
| Phase Resistance | 9.2ohms |
| Recommended Voltage | 12-24V |
| Inductance | 7mH±20%(1KHz) |
| Length | 51mm |
