RDS3128 or RDS3135 RDS3235 Coreless Servo w/ Bracket
${{App.Price(price)}}
Specification{{specs.length > 1 ? 's' : ''}}:
{{spec.fdColor}}
{{spec.fdSize}}
Quantit{{quantity > 1 ? 'ies' : 'y'}}:
RC Robot Coreless Servo Motor

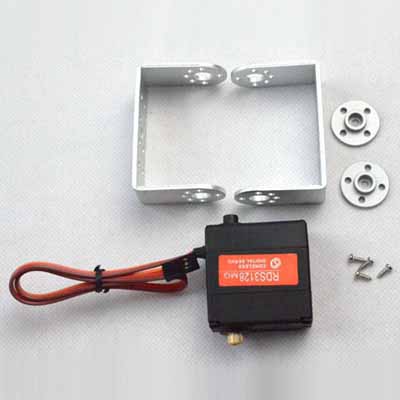

28kg.cm Coreless Servo with Bracket Metal Gear RDS3128MG- 180 Degree
General Specification
- Storage temperature range: -20°C ~ 60°C
- Operating temperature range: -10°C ~ 50°C
- Operating voltage: 6V ~ 8.4V
Electrical Specification
| Description | 7.2V | 8.4V |
|---|---|---|
| Operating speed (at no load) | 0.10sec/ 60° | 0.9sec/ 60° |
| Running current (at no load) | 250mA | 300mA |
| Stall torque (at lock) | 25kg.cm | 28kg.cm |
| Stall current (at lock) | 3.2A | 3.5A |
| Idle current (at stopped) | 4mA | 5mA |
| Description | Specification |
|---|---|

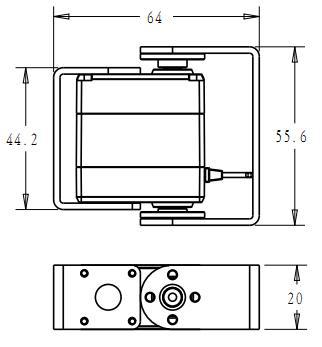

| Overall dimension | 40 x 20 x 40.5mm |
| Limit Angle | 360°±10° |
| Weight | 64±1g |
| Connector wire gauge | #28 PVC |
| Connector wire length | 320±5mm |
| Horn gear spline | 25T/ψ5.80 |
| Reduction ratio/td> | 275:1 |
| Description | Specification |
|---|---|
| Operating frequency | 50-330Hz |
| Operating angle | 90° (from 1000 to 2000 usec) |
| Neutral position | 1500 usec |
| Dead band with | 3 usec |
| Rotating direction | Counter clockwise (from 1000 to 2000 usec) |
| Pulse width range | From 500 to 2500 usec |

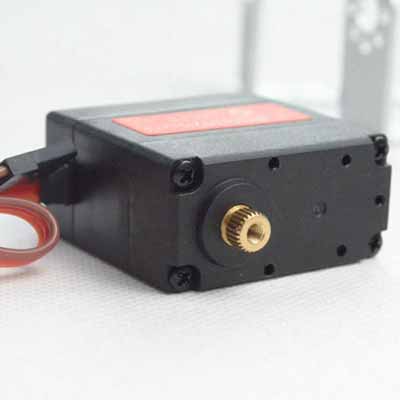

This is the RDS3128MG Coreless RC Servo Motor which is widely used for RC Robot builds.

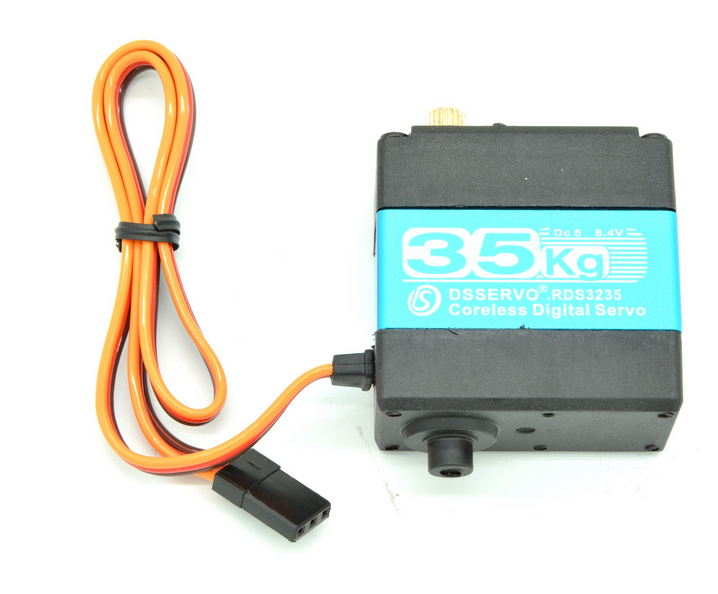

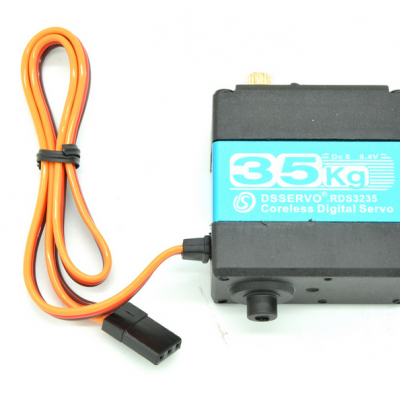

New arrival: RDS3135 35Kgs Servo Motor 180 degree or 270 degree.
